SERIES 3100: Chemplex SpectroMicro® XRF Sample Cups

SERIES 3100: Chemplex SpectroMicro® XRF Sample Cups

Oxford Specific

Oxford Specific

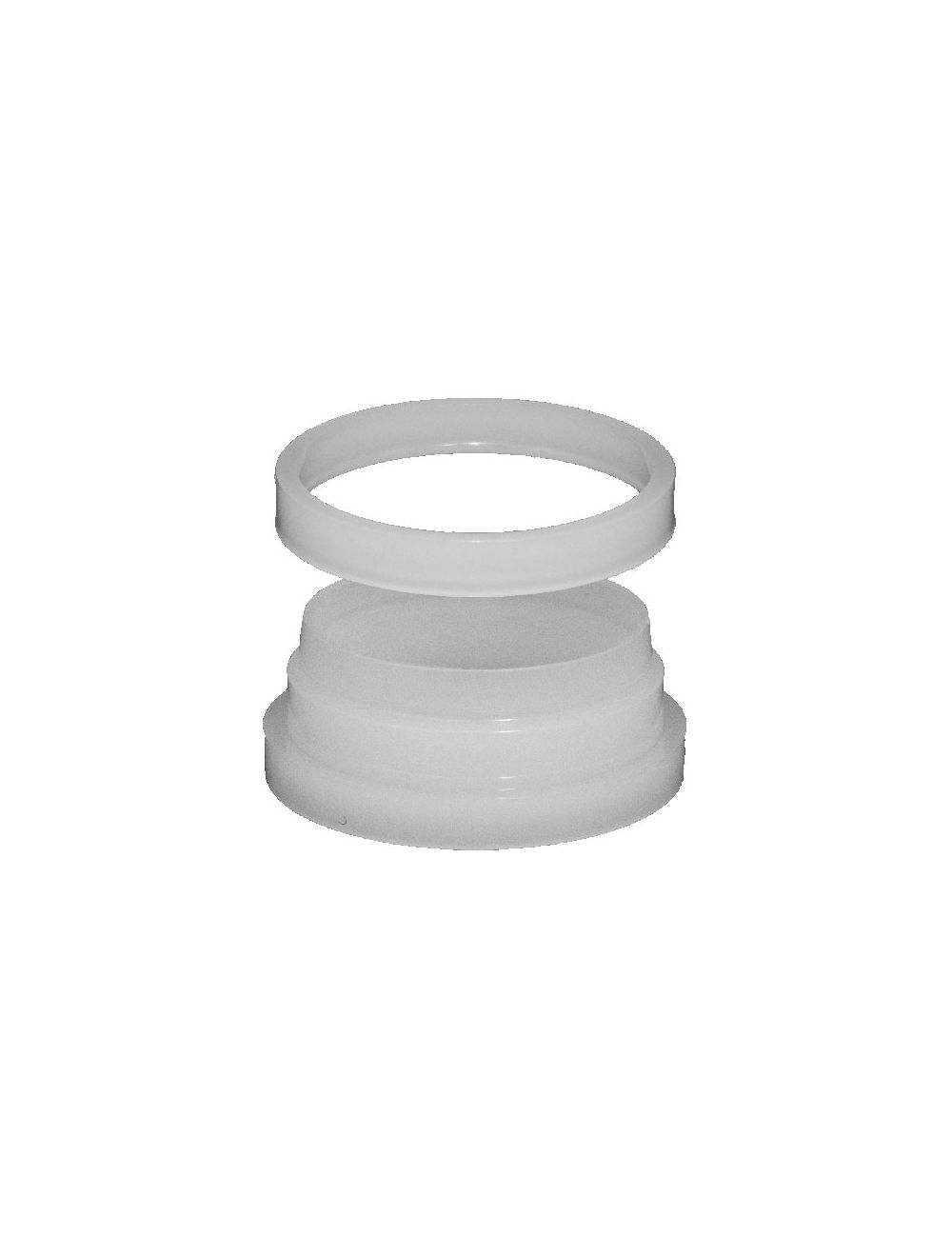

SpectroSulfur® Analyzer Single Open-Ended XRF Sample Cup

Rating:
100%

The Chemplex® has a line of XRF sample cups specifically designed to fit many of the Sulfur analysers.

Single open-ended

External overflow reservoir

Snap-On Ring thin-film or TrimLess® sleeve attachment

ThermoPlastic® seal venting

For Sulfur Analyzers including the XOS and Horiba Systems

Package

100 sets per package

Quantity Discount

Order 20-39 packages and receive $5.00 off standard price per package

Order 40 or more and receive $10.00 off standard price per package

Made in USA

The Chemplex® line of SpectroSulfur® XRF Sample cups, are designed to be compatible with most of the XRF analyzers targeting Sulfur, and other specific elements, analysis. The closed end integrates an external overflow reservior for collecting thermally sensitive fluid samples with tendencies to expand.

These XRF sample cups are configured with either the Snap-On Ring and bead-to-indent Cell geometry or the TrimLess® feature allowing for the maximim flexability. These create a taut thin-film sample support plane with leak-resistant seals.

The SpectroSulfur® Analyzer Sample Cups have an easily rupturable ThermoPlastic® seal provides a venting passageway leading to the integrated external overflow reservoir. Pressure differentials between the interior of the sample cup and sample chamber are equalized for taut thin-film sample support window planes. The Low Profile shape enables accommodation by some instrument sample holders with limited height provision.

® SpectroSulfur, SpectroMembrane, ThermoPlastic, TrimLess and Chemplex are registered trademarks of Chemplex Industries, Inc.

® Sindie is a registered trademark of X-Ray Optical Systems, Inc.

More Information

Instrument Compatibility

The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.

Manuf Models Sample Cup Cat No
Bruker S2 Puma 2140, 2143, 2144 & 2154
Bruker S2 Puma w/ Xflash 2143, 2144 & 2154
Bruker S2 Ranger 2143
Bruker S4 2140
Bruker S8 w/ Flex Loader 2143, 2144 & 2154
Bruker S8 Tiger 2143, 2144, 2154, 1095 & 2195
Horiba SLFA Units 1850, 1083 & 1084
Horiba 6100/6800/60A 1086 & 1087
Horiba Mesa 7220 1083, 1850 & 3130 ( use 7220-P or 7220-S locating ring)
Innov-X Hand Held Units 1330, 1330-SE & 1340
Oxford Lab-X 1940L, 1940-ox
Oxford MDX 1935-ox, 1940-ox
Oxford Replacement Cells 54-LX6922 1440L
Oxford Replacement Cells & Covers: 54-CK-100 1935-ox
Oxford Replacement Cells & Covers: 54-CK-100 and L242 Holder 1940-ox
Malvern Panalytical Epsilon 3XL, MiniPal 2135
Malvern Panalytical Axios P2
Malvern Panalytical Epsilon 5 2145, 2146
Malvern Panalytical Venus 200 1095, 2195
Rigaku Mini-Z

2140

Rigaku Primus, Rix, ZSX-100

1095, 2195

Spectro XEPOS, Xepos Low S, Xepos IQ, X-Lab 2000, 200, 200T Titan, Phoenix 1060, 1065, 1070, 1075, Series 1300, Series 1400, Series 1500, Series 1700, Series 1800, 1930, 1930-SE, 1940, 2131, 2135
Spectro IQ 2132
Spectro Phoenix II 2131
Spectro Scout 3106, 3110, 3115 & 3120
Thermo Advant'x 2146
Xenemetrix X-Calibur, X-Cite 2131, 2132, 2132S, 1540
XOS Sindie®, Clora, Signal, HD Maxine, Phoebe, Petra 1083, 1084 & 1850
XOS Sindie 3rd Generation 3130 & 3132

Recycling

Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.

Recycle_2_HDPE

® Sindie, Clora, HD Maxine, Phoebe, Signal are registered trademarks of XOS Inc.

No
Write Your Own Review
You're reviewing:SpectroSulfur® Analyzer Single Open-Ended XRF Sample Cup
Your Rating
Grouped product items
Cat. No. Open Ends Outside Dia. Max O.D. Aperture Vol Height Price Price for
Qty 20+
Price for
Qty 40+
Qty
1083
Single
1.69" (42.9mm)
1.84" (46.7mm)
1.43" (36.3mm)
12
0.73" (18.5mm)
$60 $55 $50
1084
Single
1.69" (42.9mm)
1.84" (46.7mm)
1.43" (36.3mm)
12
0.73" (18.5mm)
$60 $55 $50
1086
Single
1.69" (42.9mm)
1.84" (46.7mm)
1.43" (36.3mm)
12
0.73" (18.5mm)
$60 $55 $50
1087
Single
1.69" (42.9mm)
1.84" (46.7mm)
1.43" (36.3mm)
12
0.73" (18.5mm)
$60 $55 $50
1850
Single
1.69" (42.9mm)
1.87" (47.5mm)
1.41" (35.8mm)
13
0.77" (19.6mm)
$60 $55 $50
3130
Single
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1
0.76" (19.4mm)
$65 $60 $55
3132
Single
0.73" (18.4mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1
0.76" (19.4mm)
$65 $60 $55
3135
Single
0.78" (19.8mm)
0.94"X0.78" (23.9X19.8mm)
0.53" (13.3mm)
1
0.76" (19.4mm)
$65 $60 $55
