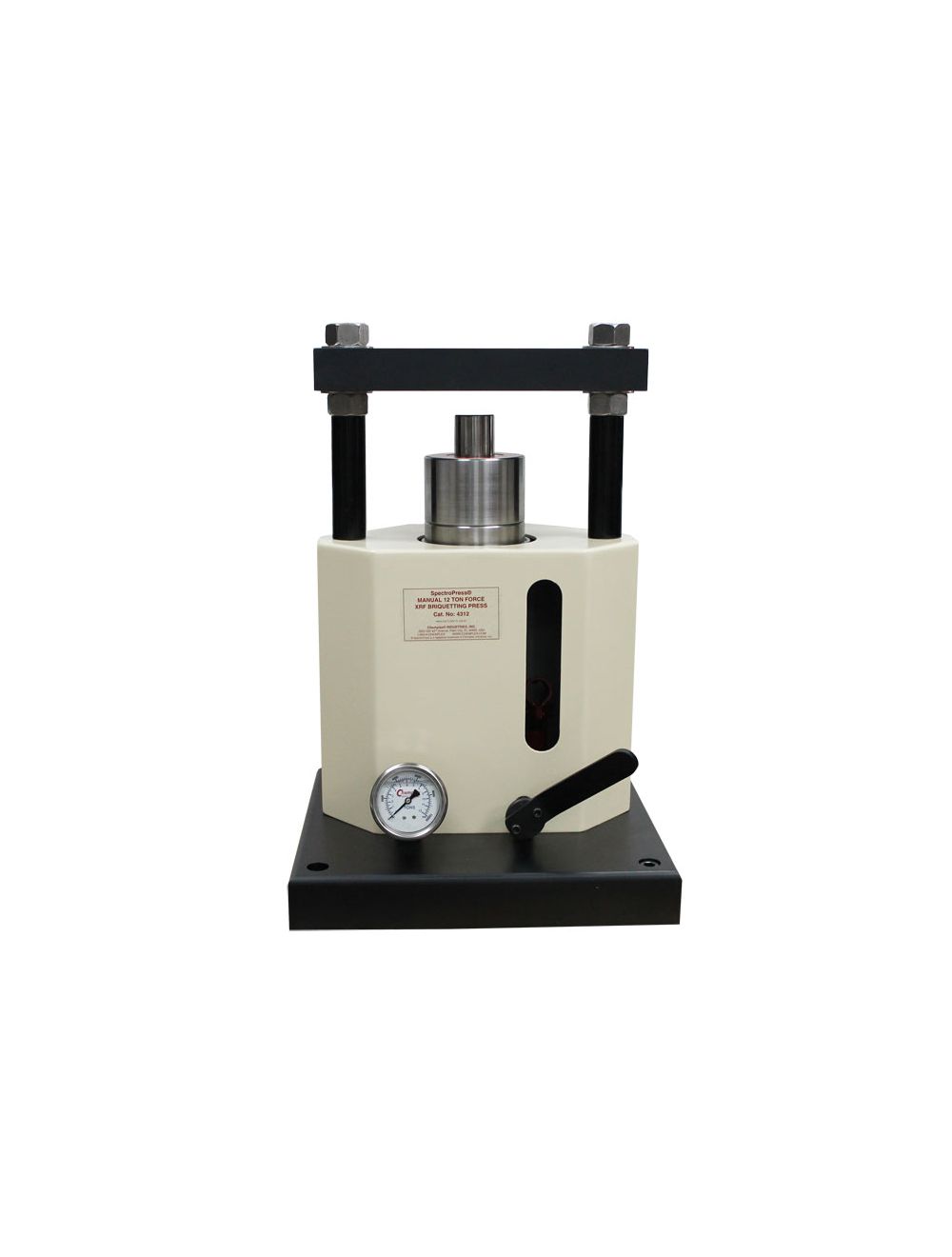

Manual 12 Ton SpectroPress pellet Press

Compact contemporary two post designed manual SpectroPress^® model delivers 12 tons of force. Large accessible area facilitates fast and easy die removal and reinsertion.

Accepts Chemplex^® annealed stainless steel die sets optionally available for producing 32, 35, 40 and 45 mm diameter XRF sample briquettes and 13 mm diameter sample for IR applications.

The stainless steel dies are designed to accept Chemplex^® compressible tapered aluminum PelletCup^® powdered sample briquetting cups.

Long 20” (51cm) pumping handle with rubber grip facilitates pumping. Pressure release control rapidly retracts ram. Analog gauge indicates 0 to 12 tons in 0.4 ton increments. Four 17/32” (0.531”) diameters through holes with 7/8” diameter x ½” deep counterbores in each corner are provided to safely secure the press in position.

The platen, or die platform, is uniquely designed to accept Chemplex^® 13, 32, 35, 40 and 45mm evacuable stainless steel die sets. The platen incorporates a series of stepped counterbores that serve to accommodate, self-align, self-center and secure the respective die sizes in position. It is important that the die is placed completely within the confines of a counterbore. The use and applications of another die brand presents the potential possibility of misfit, endangerment and damage to the machine.

^® SpectroPress, PelletCups and Chemplex are registered trademarks of Chemplex Industries, Inc.
