1300: Universal Snap-On Ring Fastener

$750.00
Availability: Out of stock
SKU
1300

This unique device is designed to facilitate the attachment of thin-film sample support windows to sample cups utilizing "Snap-On Rings." Averts contamination by contact during assembly, allows uniform application of pressure, eliminates "Snap-On Ring" misalignment and ensures taut thin-film sample support planes; ideally suitable for multiple sample preparations.

Features

Simplifies thin-film window attachment

Applies uniform pressure for wrinkle-free sample planes

Usable for all "Snap-On Ring" XRF Sample cups

Adjustable height

Swing away post for easy removal

Concentric rings for centering the cup and "Snap-On" Ring.

Durable stainless steel construction

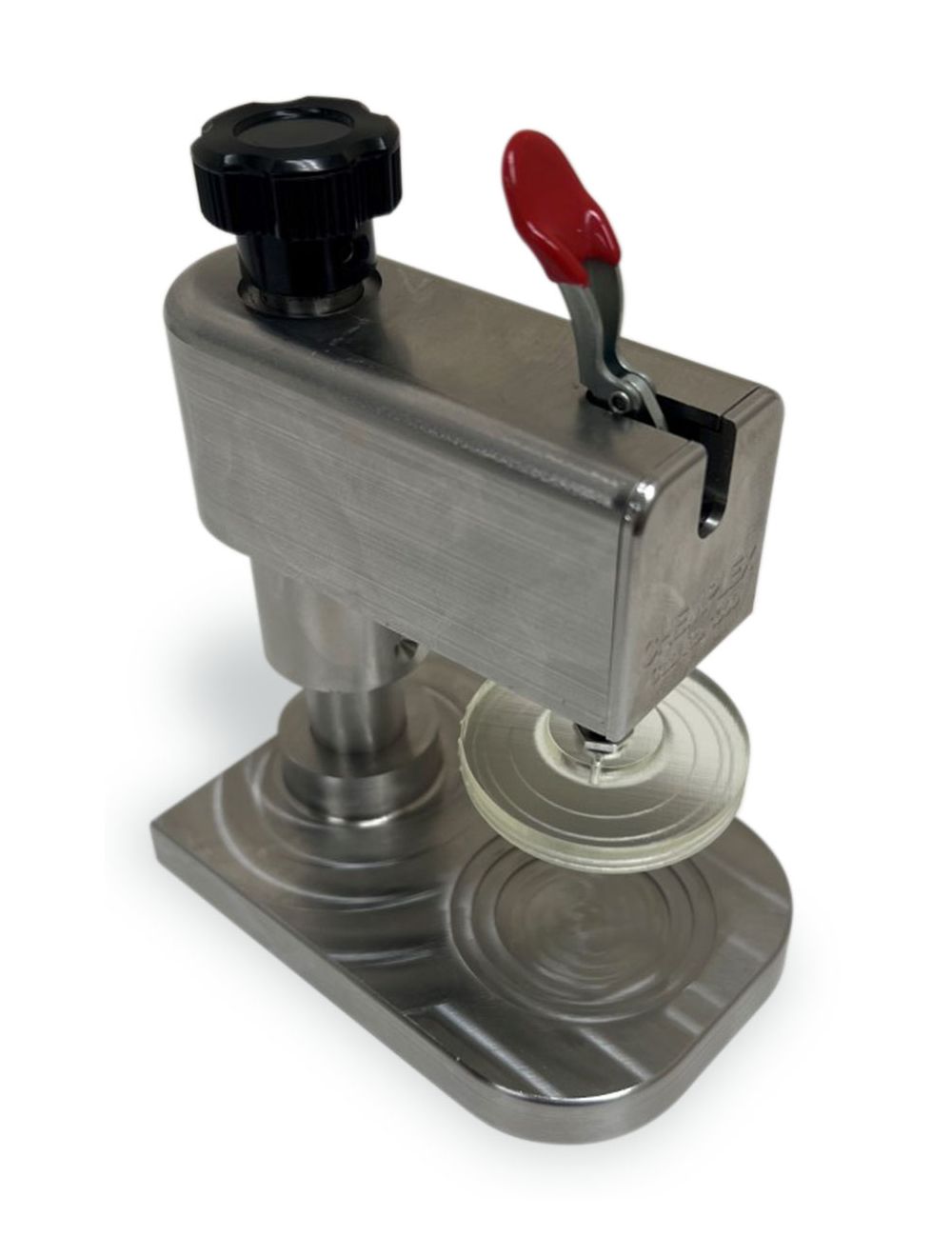

This handy device facilitates attaching thin-film windows to sample cups utilizing "Snap-On Rings". It consists of a paddle lever connected to a flat circular disk. When the lever is pushed down, the disk applies even pressure against the "Snap-On Ring" and it is gently uniformly pushed into position resulting in a taut thin-film sample plane.

® Chemplex is a registered trademark of Chemplex Industries, Inc.

More Information

The Chemplex® "Snap-On Ring" fastener is Simple, Fast and convenient to use. Simply place the sample cup on the grooved platform. Position the thin-film and "Snap-On ring" over the sample cup opening. Repress the lever and then release it.

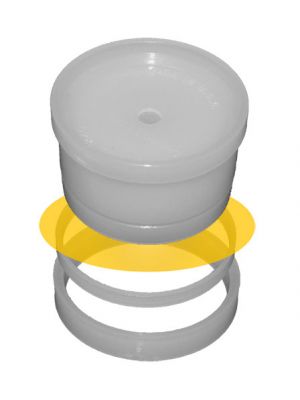

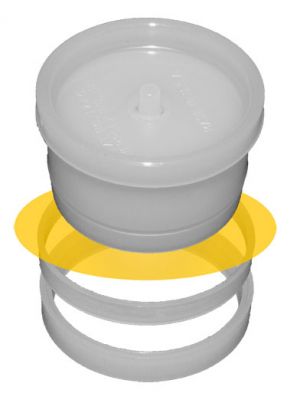

For use with Sample Cups:  1330, 1330-SE, 1430, 1430-SE, 1440, 1530, 1530-SE, 1540, 1730, 1730-SE, 1740, 1830, 1830-SE, 1840, 1930, 1930-SE, 1940, 1850
