SERIES 1300: TrimLess® Sleeved Sample Cups

The Series 1300 XRF sample cups include a re-sealable cap that integrates an external overflow reservoir with the option for venting. With the re-sealable cap rotated in the open position, an evacuation passageway is established from within the Cell through the cap leading into the reservoir. By re-positioning the cap, the passageway is closed for sample storage and future referral.

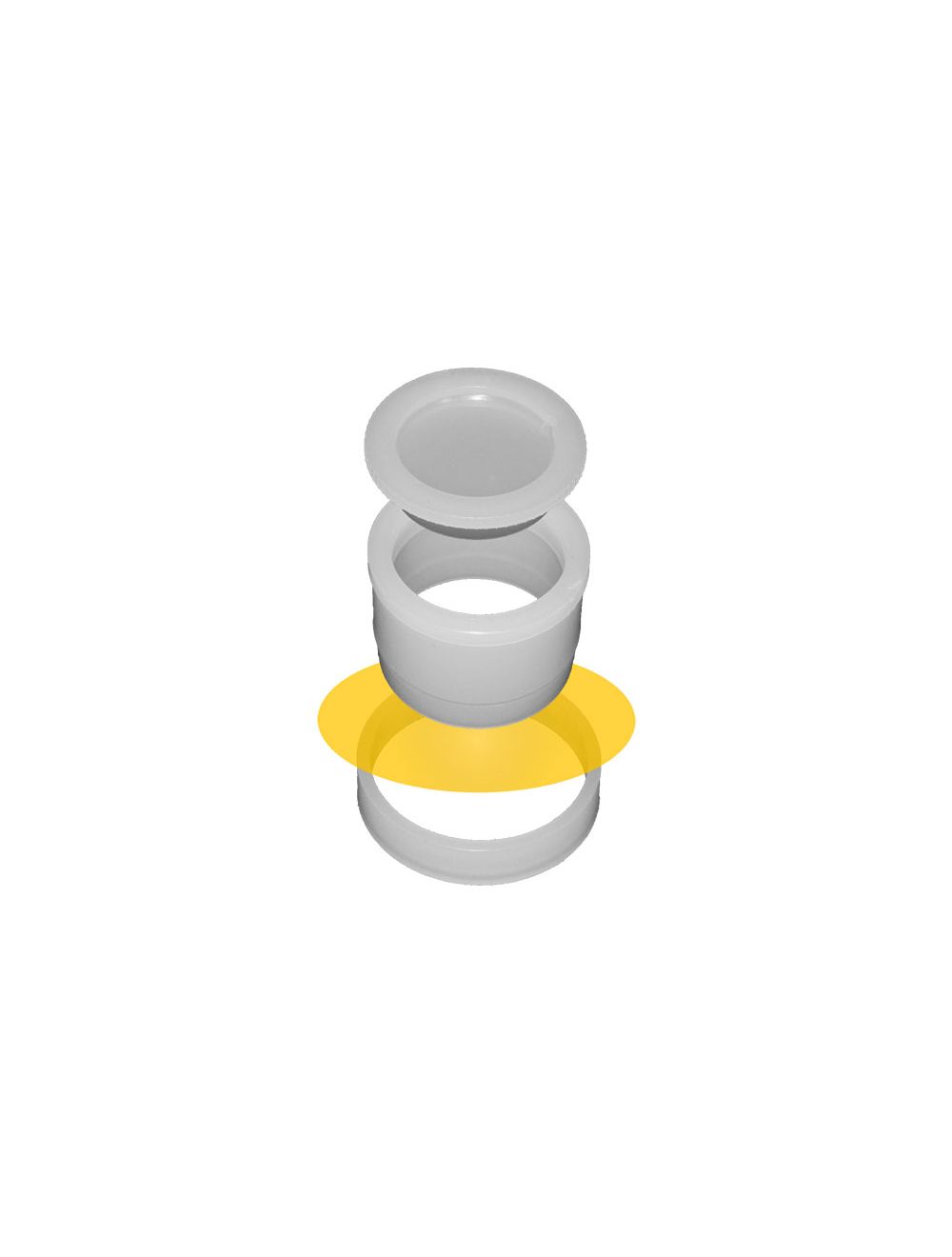

The Cell neck and “Snap-On Ring” are uniquely designed with the Chemplex developed “bead-to-indent” geometry responsible for forming taut thin-film sample window planes and leak-resistant seals.

The assembled sample cup with the cap attached, creates a series of internal physical barriers intended to retard inadvertent sample particle disruption and withdrawal into the sample chamber.

         Assembled sample cup illustrates the                            Underside view of cap

       Integrated overflow reservoir in position                      illustrates physical barriers

To facilitate trimming extraneous thin-film, the 32mm diameter sample cups are alternatively provided with patented serrated cutting edges integrated in the upper portion of the “Snap-On Rings.” To order 32mm diameter sample cups with serrated edged thin-film assembling rings, request catalog number “1330-SE.”

                                          Serrated edged “Snap-On Ring” is responsible

                                                    for detaching extraneous thin-film

* Reg. US Patent No: 7,981,380 B2

^® Chemplex and Trimless are registered trademarks of Chemplex Industries, Inc.
