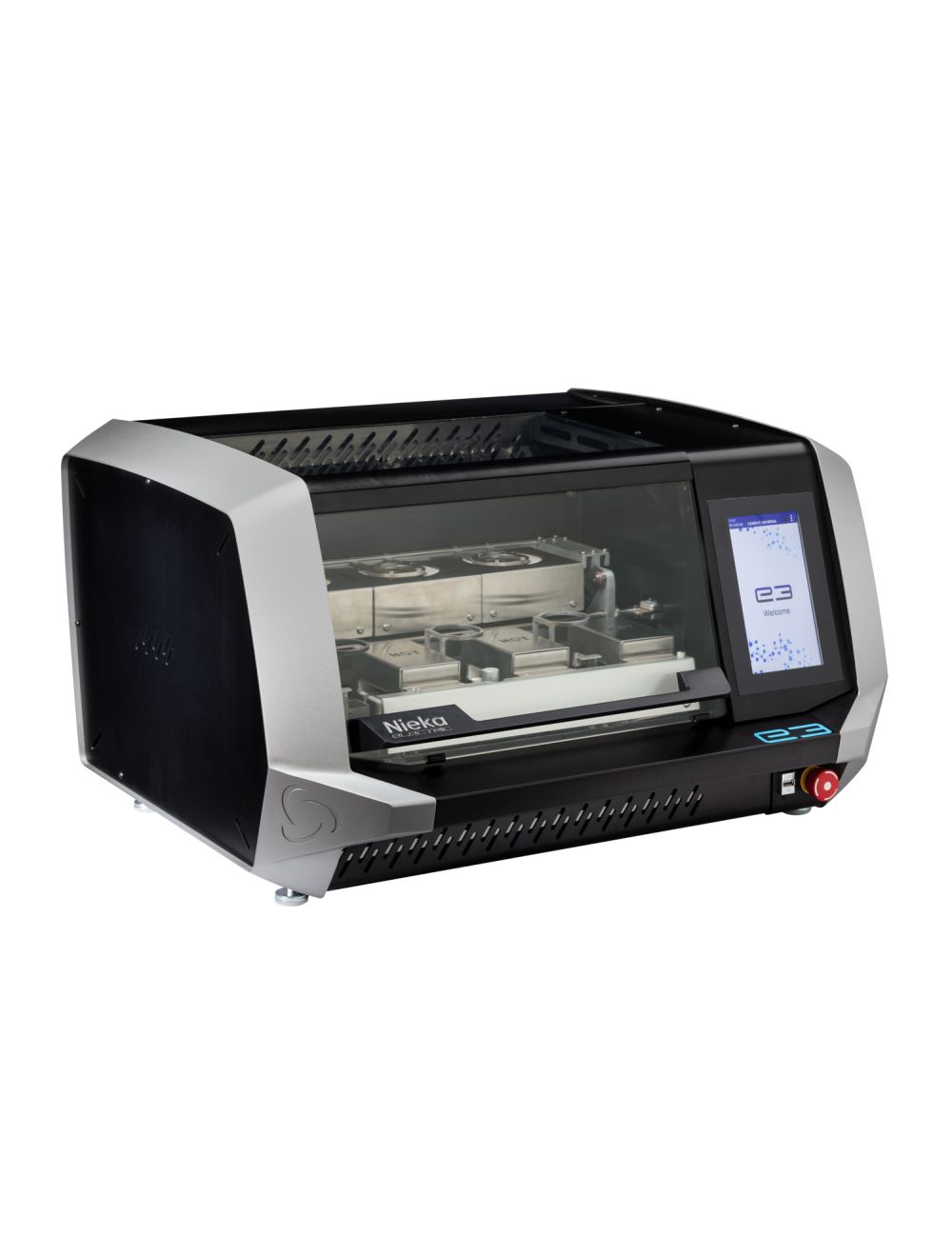

7100-3B-E: Fluxer, E-Series 3 Position, Electric, Solutions ONLY, no burner for glass beads

PERFECT FUSIONS NEEDS THE PERFECT FLUXER

Chemplex^® Industries, Inc. offers the most innovative and technologically advanced automatic gas and electric fusion machines for XRF sample bead formations and dissolutions for ICP and AA analysis. The Chemplex^® Fluxers are a state-of-the-art fluxer that offers reliable temperature monitoring of the fusion process along with fully programmable features to give you perfect fusion. It is simple to operate all through an LCD touch-screen with access to all parameters. They perform an auto-calibration at startup to eliminate any drifting conditions. There is on-board storage as well as a USB port for recipe storage. The small, compact design occupies the very least amount of valuable bench-top surface. The installation is simple, The G-Series require a standard electrical outlet, 115-240VA 50/60HZ and either a low pressure propane or natural gas source, less than 0.5PSI. The G-Series warms up fast and is ideal for those high throughput labs. The E-Series operates from a 208-240VAC 50/60Hz mains voltage.

High Productivity: Produces 1 to 8 glass beads or solutions per cycle (up to 48 samples per hour).

Automated Operation: Multi-lingual touchscreen controller with easy to access controls, import and export fusion method from USB or network, easy to follow fusion program execution through the instrument’s display or PC. All fusion parameters can be fully customized for optimal sample preparation.

Monitoring: Temperature monitoring of the fusion process (patent pending), real-time monitoring through the Chemplex^® data management system.

Efficiency and Repeatability: Proprietary heating chambers (patent pending) allow a high thermal efficiency and higher fusion temperatures for difficult samples. Each chamber is well separated from the surroundings, allowing a perfect repeatability.

Easy Installation: The G-Series requires alow-pressure gas line and a standard electrical outlet are required. The G-Series runs on propane, any other liquid petroleum gas (LPG) or natural gas. No compressed air or oxygen is required. The E-Series only requires an electrical connection.

Options: The G-Series fluxers are available with either 4 or 8 position. They can be configured to make only glass beads (specify bead size), solutions, or both.

The E-Series fluxer is availalbe with either 1 or 3 position but can be configured to make only glass beads (specify bead size), solutions or both.

Bead Sizes: Available bead sizes are: 30, 32, 35, 38 and 40mm diameters.

Safety: Integrated locking safety door, real-time flame monitoring and automatic shut-off features, regulatory shutdown button.

Connectivity: USB ports, TCP/IP Ethernet port.
