3110: SpectroMicro® XRF Sample Cups featuring

3110: SpectroMicro® XRF Sample Cups featuring "FunnelShape"™ Technology with Vented Cap; 0.39" (10mm) Aperture,Double Open Ends; 1.20" (30.5mm) Dia X 0.99" (25.1mm) Height, 100/Pkg

3120: SpectroMicro® XRF Sample Cups with Vented Cap: 0.79

3120: SpectroMicro® XRF Sample Cups with Vented Cap: 0.79" (20mm) Aperture,Double Open Ends; 1.20" (30.5mm) Dia X 0.99" (25.1mm) Height, 100/Pkg

3115: SpectroMicro® XRF Sample Cups featuring "FunnelShape"™ Technology with Vented Cap; 0.59" (15mm) Aperture,Double Open Ends; 1.20" (30.5mm) Dia X 0.99" (25.1mm) Height, 100/Pkg

$70.00
Availability: In stock
SKU
3115
  • Buy 20 for $65.00 each and save 7%
  • Buy 40 for $60.00 each and save 14%

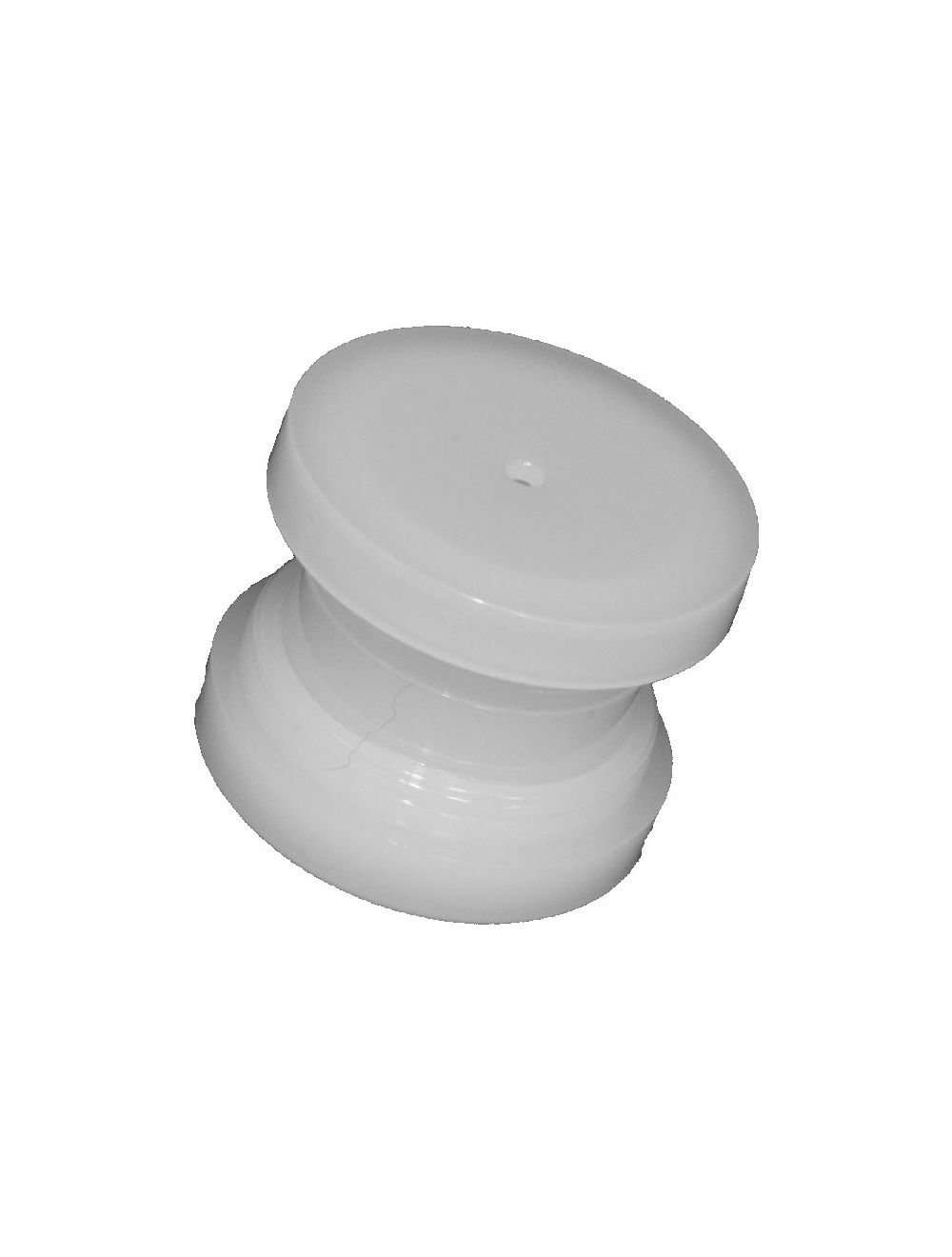

Vented Snap-On Cap equalizes pressure differentials within the Cell and sample chamber to maintain a taut thin-film sample support plane.

Features

Small volume capacities

Utilizes FunnelShape technology

6 to 20 mm diameter sample planes

Fits into 32 mm diameter sample holders

External Overflow Reservoir

Package

100 sets per package

Quantity Discount

Order 20-39 packages and receive $5.00 off standard price per package

Order 40 or more and receive $10.00 off standard price per package

Made in USA

Vented Snap-On Cap equalizes pressure differentials within the Cell and sample chamber to maintain a taut thin-film sample support plane.

Cell interior integrates a FunnelShape configuration for introducing and containing powdered, solid or liquid sample substances. The larger conically shaped upper portion of the funnel allows and facilitates sample introduction. The lower cylindrically shaped spout of the funnel represents the actual sample chamber and its diameter is expressed as the aperture. Select the sample cup size by matching the aperture diameter to the volume of sample available for analysis.

The Collar is used to secure a thin-film sample support window substance to the Cell and designed for acceptance by 32mm sample cup holders.

Select the diameter of the aperture from the catalog number. The last two digits of the catalog number reflect the aperture diameter of the SpectroMicro® sample cup funnel. The funnel configuration guides the sample toward the thin-film sample window.

Note: A set consists of a cell, vented cap and collar

Registered U.S. Patent No: 8,404,197

® SpectroMicro is a registered trademark of Chemplex Industries, Inc.

FunnelShape is a trademark of Chemplex Industries, Inc.

More Information

Instrument Compatibility

The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.

Manuf Models Sample Cup Cat No
Bruker S2 Puma 2140, 2143, 2144 & 2154
Bruker S2 Puma w/ Xflash 2143, 2144 & 2154
Bruker S2 Ranger 2143
Bruker S4 2140
Bruker S8 w/ Flex Loader 2143, 2144 & 2154
Bruker S8 Tiger 2143, 2144, 2154, 1095 & 2195
Horiba SLFA Units 1850, 1083 & 1084
Horiba 6100/6800/60A 1086 & 1087
Horiba Mesa 7220 1083, 1850 & 3130 ( use 7220-P or 7220-S locating ring)
Innov-X Hand Held Units 1330, 1330-SE & 1340
Oxford Lab-X 1940L, 1940-ox
Oxford MDX 1935-ox, 1940-ox
Oxford Replacement Cells 54-LX6922 1440L
Oxford Replacement Cells & Covers: 54-CK-100 1935-ox
Oxford Replacement Cells & Covers: 54-CK-100 and L242 Holder 1940-ox
Malvern Panalytical Epsilon 3XL, MiniPal 2135
Malvern Panalytical Axios P2
Malvern Panalytical Epsilon 5 2145, 2146
Malvern Panalytical Venus 200 1095, 2195
Rigaku Mini-Z

2140

Rigaku Primus, Rix, ZSX-100

1095, 2195

Spectro XEPOS, Xepos Low S, Xepos IQ, X-Lab 2000, 200, 200T Titan, Phoenix 1060, 1065, 1070, 1075, Series 1300, Series 1400, Series 1500, Series 1700, Series 1800, 1930, 1930-SE, 1940, 2131, 2135
Spectro IQ 2132
Spectro Phoenix II 2131
Spectro Scout 3106, 3110, 3115 & 3120
Thermo Advant'x 2146
Xenemetrix X-Calibur, X-Cite 2131, 2132, 2132S, 1540
XOS Sindie®, Clora, Signal, HD Maxine, Phoebe, Peta 1083, 1084 & 1850
XOS Sindie 3rd Generation 3130 & 3132

Recycling

Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.

HDPE

® Sindie, Clora, HD Maxine, Phoebe, Signal are registered trademarks of XOS Inc.
