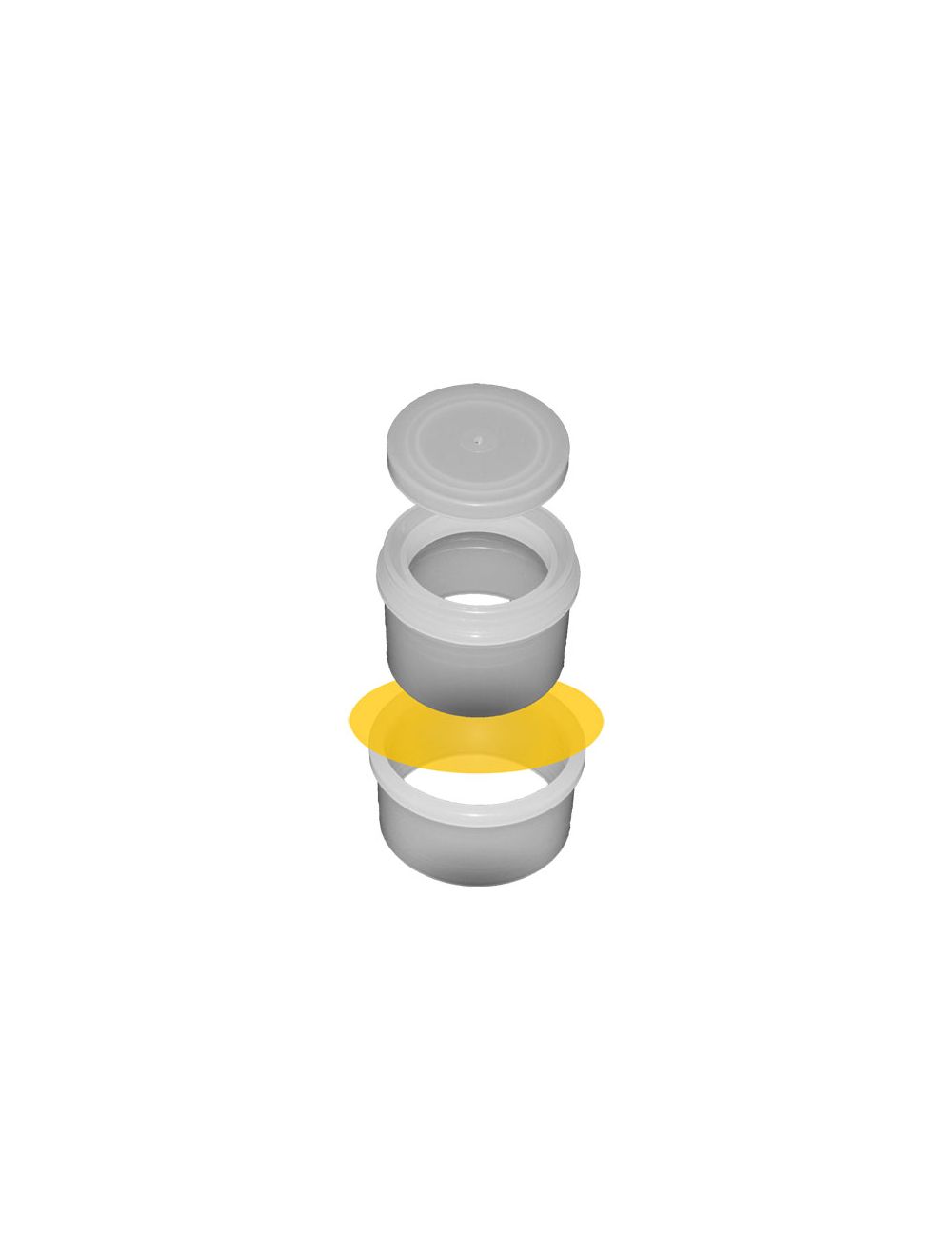

2135: XRF Sample Cups with TrimLess® Sleeve, Internal Overflow Reservoir with Vented Cap, Double Open Ends; 1.35" (34.3mm) Dia X 1.17" (29.7mm) Height, 100/Pkg
- Buy 20 for $50.00 each and save 9%
- Buy 40 for $45.00 each and save 18%
Snap-On Cap establishes a series of physical baffles that provide resistance to powdered sample withdrawal under evacuated conditions. Vent hole equalizes pressure differentials within the sample cup and sample chamber under helium flushes and vacuum operating conditions.
Features
• TrimLess® sleeve completely envelops the thin-film
• Double open-ended
• Top sample loading
• Internal Overflow Reservoir
• Vented friction-fitting cap
• He Purge support for P2
Package
• 100 sets per package
Quantity Discount
• Order 20-39 packages and receive $5.00 off standard price per package
• Order 40 or more and receive $10.00 off standard price per package
Made in USA
Snap-On Cap establishes a series of physical baffles that provide resistance to powdered sample withdrawal under evacuated conditions. Vent hole equalizes pressure differentials within the sample cup and sample chamber under helium flushes and vacuum operating conditions.
Cell integrates an Internal Overflow Reservoir for collecting thermally sensitive liquid samples within the sample cup reducing the likelihood of inadvertent spillage into the sample chamber; serves as a filling level guide for uniformity of sample volume.
Integrated flange on outer cell neck diameter physically defines the distance of TrimLess® Sleeve travel over the Cell during the thin-film sample support window attachment procedure; ensures reproducible sample cup assemblies and statistically accurate x-ray data.
Extra wide TrimLess® Sleeve envelopes extraneous thin-film sample support window material to eliminate trimming excess and dealing with annoying static prone clippings.
Catalog No. P2 has been engineered with all of the features common with the 2100 series with the additional benefit to perform more efficiently with analytical instrumentation that features advanced helium flush capabilities.
Catalog numbers 2144, 2146 and 2195 are provided with integrated vented Snap-On Caps with knobs.
Registered US Patent No: 8,043,862
® SpectroCup, SpectroMembrane, TrimLess and Chemplex are registered trademarks of Chemplex Industries, Inc.
*Please see the "Additional Info" tab for analyzer equipment compatibility details.
Instrument Compatibility The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.
Recycling Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.
