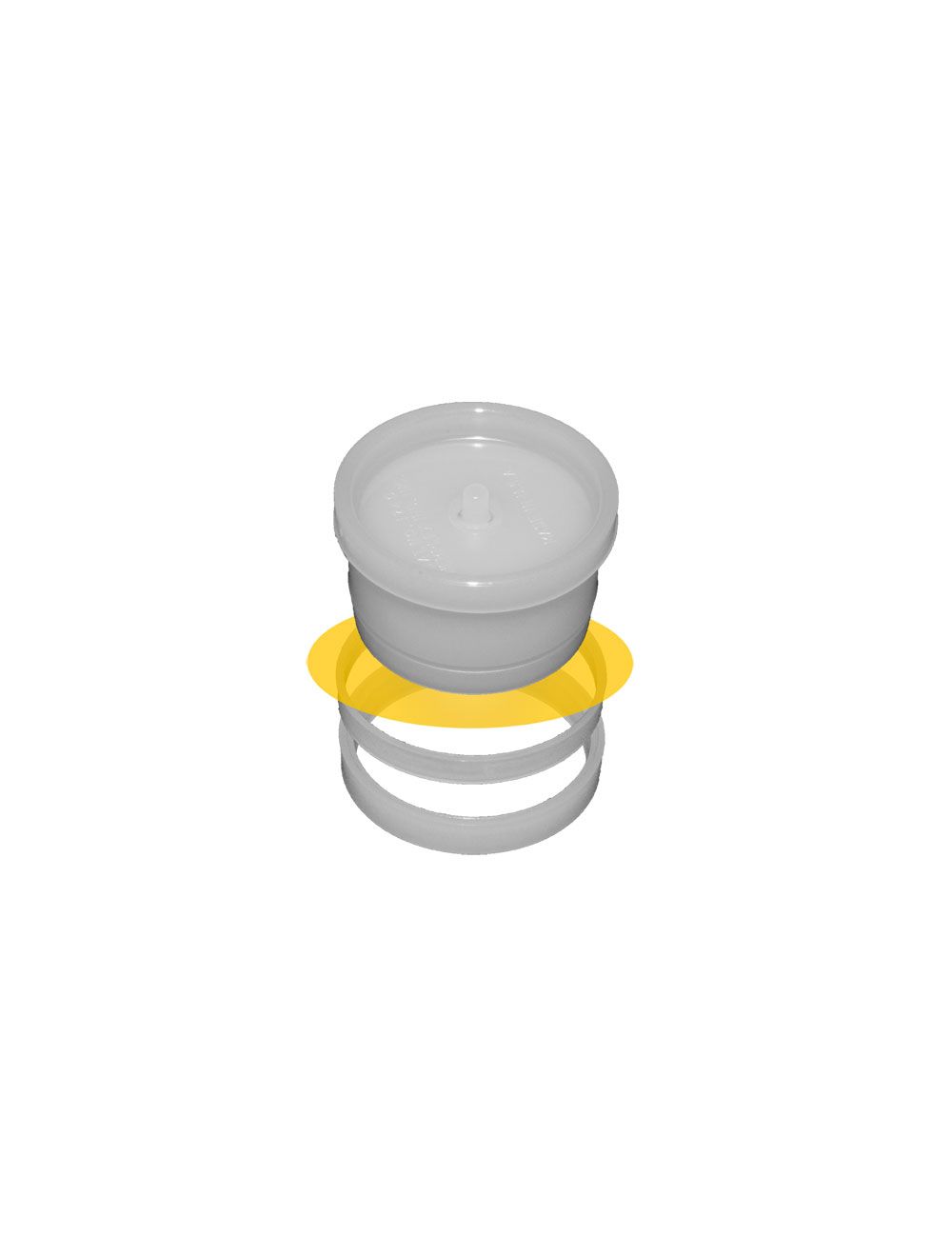

1740: XRF Sample Cup with “Snap-Post” Venting, Single Open End; 1.54" (39.1mm) Dia X 0.93" (23.6mm) Height, 100/Pkg
- Buy 20 for $55.00 each and save 8%
- Buy 40 for $50.00 each and save 17%
Venting is performed by simply jiggling the “Snap-Post” integrated with the ThermoPlastic® seal from side to side. The seal is automatically ruptured permitting a direct passageway from within the sample cup to the sample chamber. Pressure equalization is established that maintains a flat taut sample support window plane. The Integrated External Overflow Reservoir collects thermally sensitive liquids having tendencies to expand.
Features
• Single Open-ended
• "Snap-Post" venting provision
• External Overflow Reservoir
• "Snap-On Ring" thin-film attachment
• Serrated edged “Snap-On Rings” alternatively available to facilitate thin-film trimming
• Available in nominal 32 and 40mm diameters
Package
• 100 sets per package
Quantity Discount
• Order 20-39 packages and receive $5.00 off standard price per package
• Order 40 or more and receive $10.00 off standard price per package
Made in USA
Venting is performed by simply jiggling the “Snap-Post” integrated with the ThermoPlastic® seal from side to side. The seal is automatically ruptured permitting a direct passageway from within the sample cup to the sample chamber. Pressure equalization is established and maintains a flat taut sample support window plane. The Integrated External Overflow Reservoir collects thermally sensitive liquids having tendencies to expand.
The Collar provided, pre-affixes a thin-film substrate to the Cell in preparation for attaching the furnished locking “Snap-On Ring.” Alternatively, a pre-attached thin-film may be used to support evaporated droplets or micro powdered samples for thin-layered preparations enveloped in between another thin-film with both secured in place by the attachment of the included “Snap-On Ring.”
The “Snap-On Ring” and Cell neck utilize the unique Chemplex® “bead-to-indent” geometry responsible for firmly securing thin-film sample support window planes to the sample cup Cell. In combination they form wrinkle-free sample planes and leak-resistant seals.
Alternately available in nominal 32mm diameter sample cups with integrated serrated edged "Snap-On Rings" that allow extraneous thin-film trimming close to the sample cup. Order by catalog number followed by "SE".
*Please see the "Additional Info" tab for analyzer equipment compatibility details.
Instrument Compatibility The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.
Recycling Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.
