1540: XRF Sample Cup with Microporous Film & Ventable SampleCap Attachment Provision, Double Open Ends; 1.55" (39.4mm) Dia X 0.91" (23.1mm) Height, 100/Pkg
- Buy 20 for $55.00 each and save 8%
- Buy 40 for $50.00 each and save 17%
One of two supplied “Snap-On Rings” allows Microporous Film attachment to the upper Cell neck for pressure equalization within the sample cup and sample chamber. Microporous Film is attached to the upper end of the Cell Neck with a ridge. Alternatively, a “Vented Sample Cup Cap,”1600 Series, may be similarly used to maintain pressure equalization.
Features
• Double Open-ended
• Top Sample filling
• Microporous thin-film attachment provisions
• "Snap-On Rings" thin-film attachment
• Serrated edge "Snap-On Rings" alternatively available to facilitate thin-film trimming
• Available in nominal 32 and 40mm diameters
Package
• 100 sets per package
Quantity Discount
• Order 20-39 packages and receive $5.00 off standard price per package
• Order 40 or more and receive $10.00 off standard price per package
Made in USA
One of two supplied “Snap-On Rings” allows Microporous Film attachment to the upper Cell neck for pressure equalization within the sample cup and sample chamber. Microporous Film is attached to the upper end of the Cell Neck with a ridge. Alternatively, a “Vented Sample Cup Cap” 1600 Series, may be similarly used to maintain pressure equalization.
The second “Snap-On Ring” is used to attach a thin-film window to the lower end of the Cell. Both “Snap-On Rings” are designed with a “bead-to-indent” geometry for establishing taut and leak-resistant sample windows.
Alternatively available in 32mm diameter sample cups with integrated serrated edged “Snap-On Rings” that allow extraneous thin-film trimming close to the sample cup. Order by catalog number followed by “SE”.

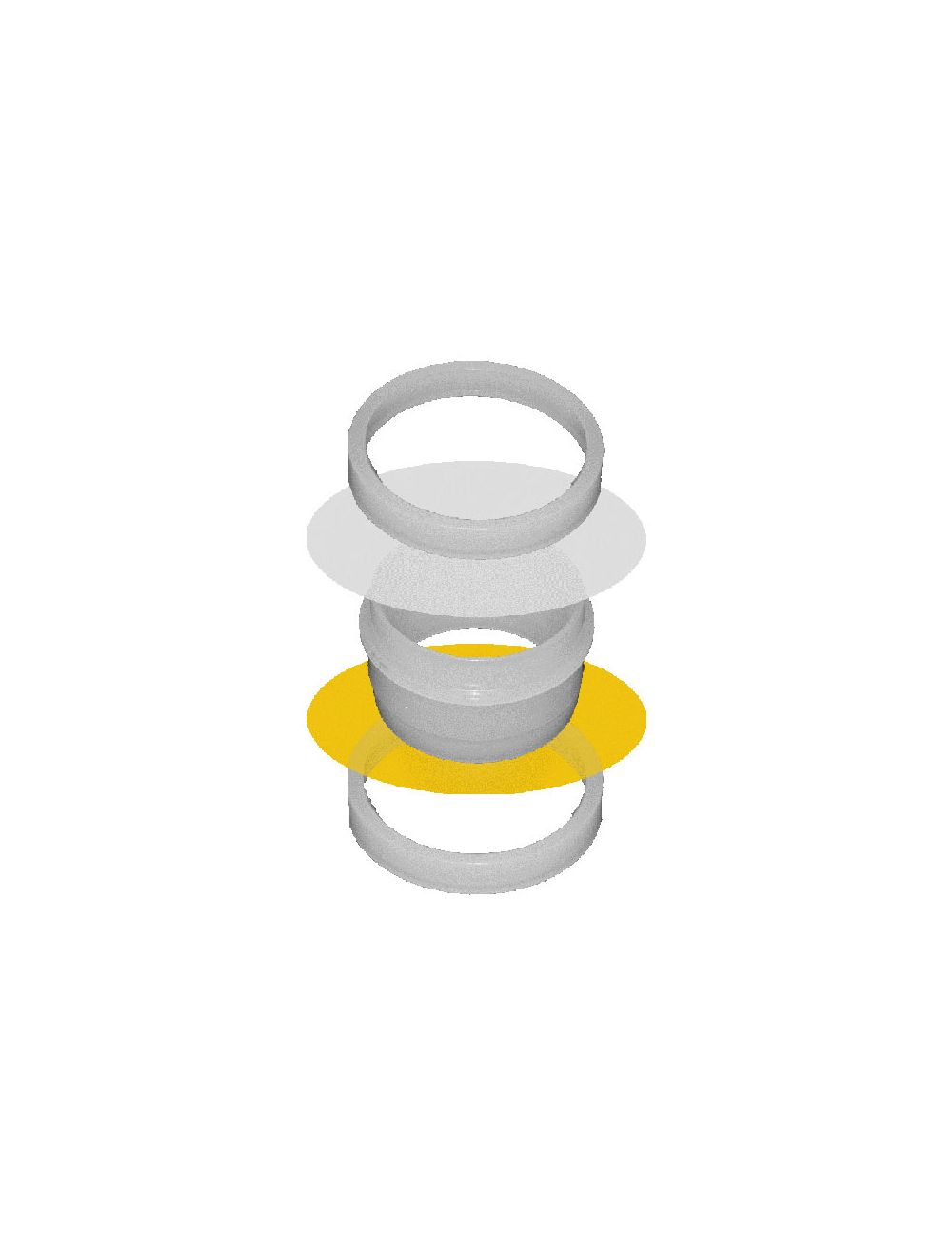

XRF Sample Cup illustrated with optionally available Microporous Film for equalizing pressure differentials within the sample cup and sample chamber.
1500 Series Sample Cup with optionally available Sample Cup Cap for equalizing pressure differentials within the sample cup and sample chamber.
* Reg. US Patent No: 7,981,380 B2
*Please see the "Additional Info" tab for analyzer equipment compatibility details.
Instrument Compatibility The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.
Recycling Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.
