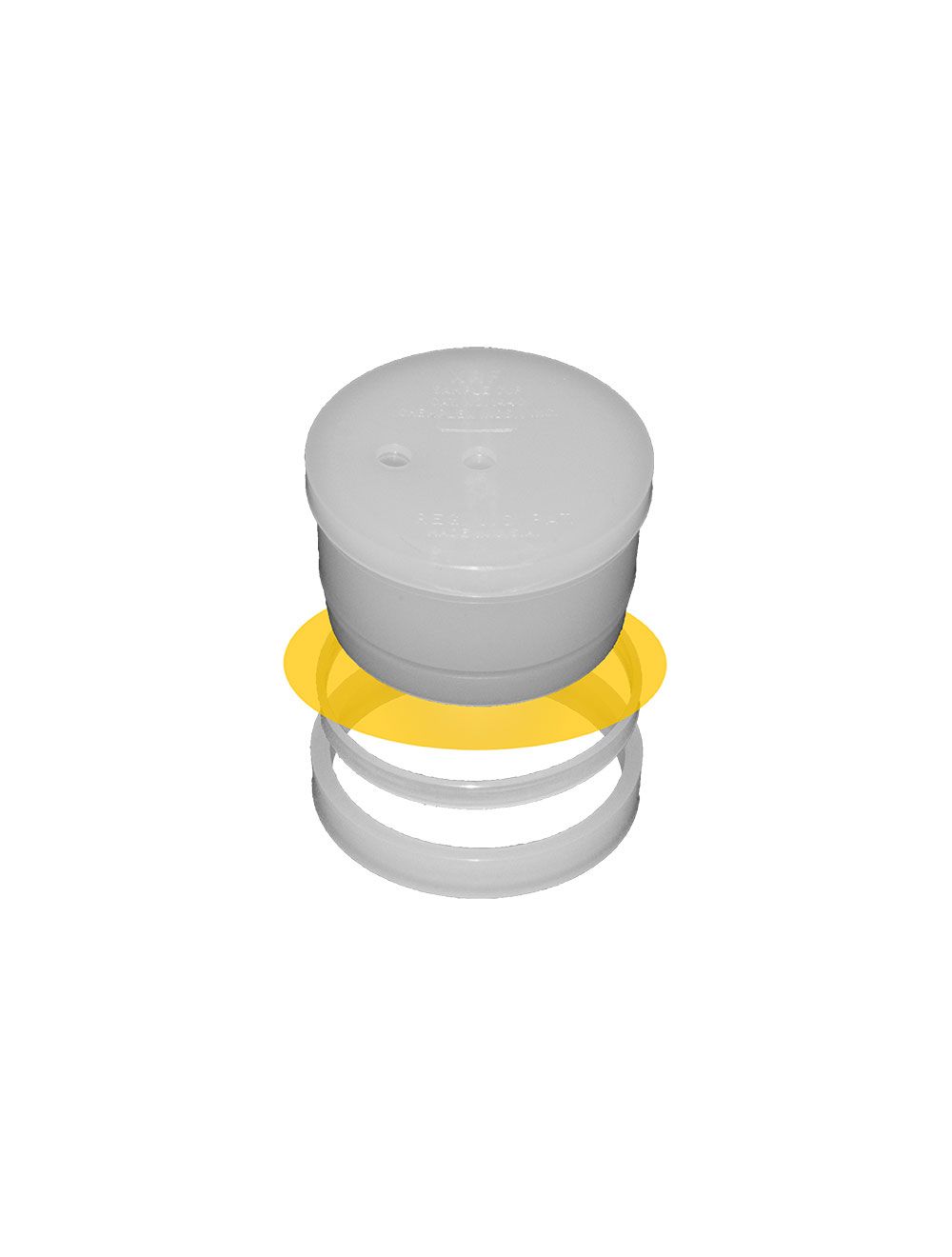

1430-SE: XRF Sample Cup with Serrated Edge, Single Open End; 1.22" (31.0mm) Dia X 0.88" (22.4mm) Height, 100/Pkg
- Buy 20 for $45.00 each and save 10%
- Buy 40 for $40.00 each and save 20%
Cell integrates two puncturable ThermoPlastic® seals for equalizing pressure differentials within the sample cup and sample chamber. The off-centered ThermoPlastic® seal is optionally usable for venting when a micro sample is contained within a capillary tube or affixed at the end of a glass rod.
Features
• Single Open-ended
• Micro-sample attachment provision
• Internal standard mounting option
• Dual ThermoPlastic® seal venting
• "Snap-On Rings" thin-film attachment
• Serrated edge "Snap-On Rings" alternatively available to facilitate thin-film trimming
• Available in nominal 32 and 40mm diameters
Package
• 100 sets per package
Quantity Discount
• Order 20-39 packages and receive $5.00 off standard price per package
• Order 40 or more and receive $10.00 off standard price per package
Made in USA
Cell integrates two puncturable ThermoPlastic® seals for equalizing pressure differentials within the sample cup and sample chamber. The off-centered ThermoPlastic® seal is optionally usable for venting when a micro sample is contained within a capillary tube or affixed at the end of a glass rod.
The Collar provided pre-affixes a thin-film substrate to the Cell in preparation for attaching the furnished locking “Snap-On Ring”. Alternatively, a pre-attached thin-film may be used to support evaporated droplets or micro powdered samples for thin-layered preparations enveloped in between another thin-film with both secured in place by the attachment of the included “Snap-On Ring.”
The “Snap-On Ring” and Cell neck utilize the unique Chemplex® “bead-to-indent” geometry responsible for firmly securing thin-film sample support window planes to the sample cup cell. In combination they form wrinkle-free sample planes and leak-resistant seals.
Internal receptacle accepts a user provided capillary tube containing micro samples or a solid substance or internal reference standard mounted on a solid rod. Inside diameter of the receptacle is 0.157” (3.98mm).
Alternatively available in 32mm diameter sample cups with integrated serrated edged “Snap-On Rings” that allow extraneous thin-film trimming close to the sample cup. Order by catalog number followed by “SE”.
*Please see the "Additional Info" tab for analyzer equipment compatibility details.
Instrument Compatibility The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.
Recycling Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.
