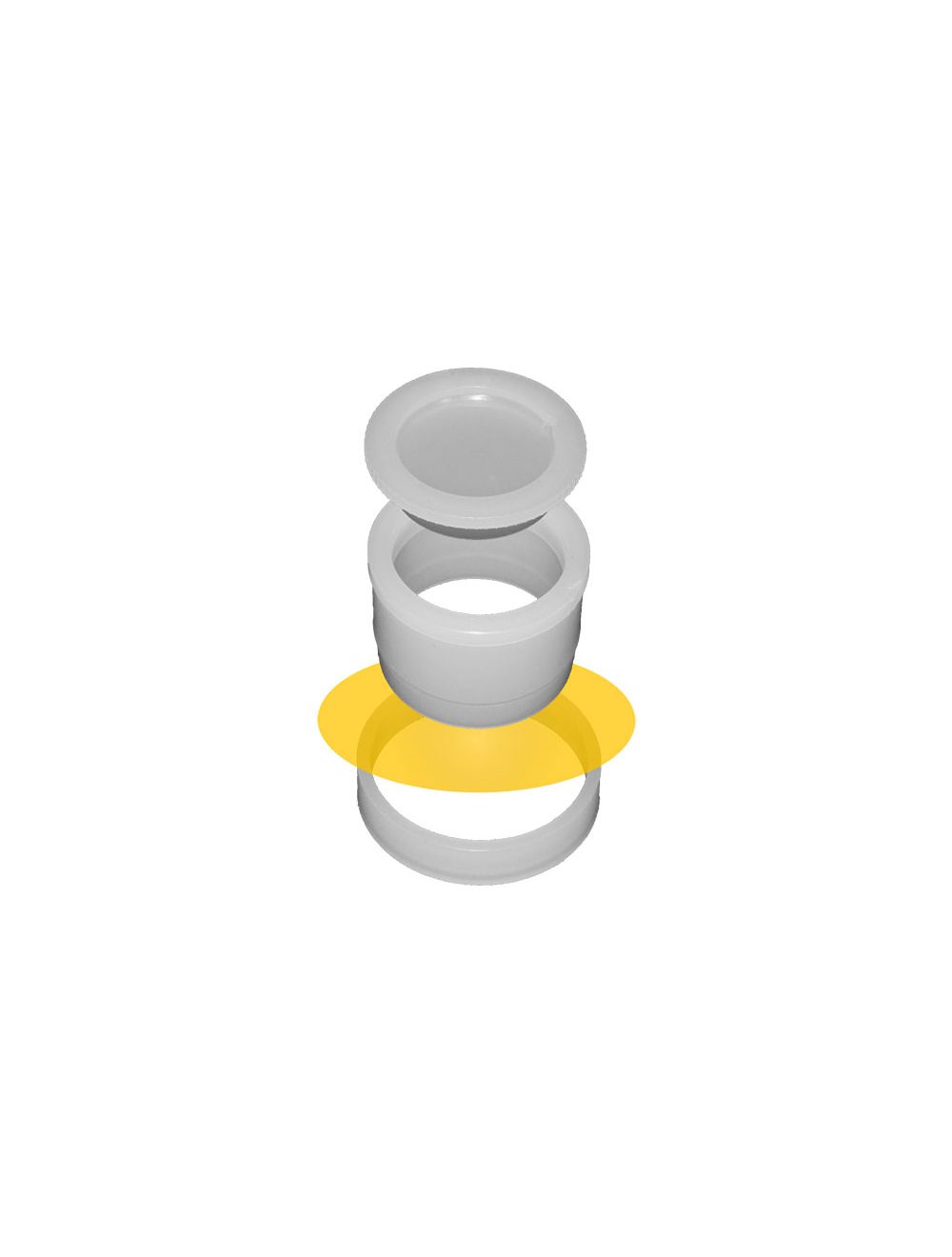

1340: "Snap-On Ring" XRF Sample Cup with Overflow Reservoir Cap, Double Open Ends; 1.54" (39.1mm) Dia X 0.91" (23.1mm) Height, 100/Pkg

$60.00
Availability: In stock
SKU
1340
  • Buy 20 for $55.00 each and save 8%
  • Buy 40 for $50.00 each and save 17%

Re-sealable cap integrates an external overflow reservoir and offers the option for venting. With the re-sealable cap rotated in the open position, an evacuation passageway is established from within the Cell to the integrated overflow reservoir and sample chamber. By re-positioning the cap, the passageway is closed for storage and future referral.

Features

Re-sealable cap with integrated vent

External overflow reservoir integrated in cap

"Snap-On Ring" with bead-to-indent geometry

Available in nominal 32 and 40mm diameters

Serrated edge "Snap-On Rings" alternatively available to facilitate thin-film trimming

Package

100 sets per package

Quantity Discount

Order 20-39 packages and receive $5.00 off standard price per package

Order 40 or more and receive $10.00 off standard price per package

Made in USA

The Series 1300 XRF Sample Cups include a re-sealable cap that integrates an external overflow reservoir with the option for venting. With the re-sealable cap rotated in the open position, an evacuation passageway is established from within the Cell through the cap leading into the reservoir. By re-positioning the cap, the passageway is closed for sample storage and future referral.

The Cell neck and “Snap-On Ring” are uniquely designed with the Chemplex developed “bead-to-indent” geometry responsible for forming taut thin-film sample window planes and leak-resistant seals.

The assembled sample cup with the cap attached, creates a series of internal physical barriers intended to retard inadvertent sample particle disruption and withdrawal into the sample chamber.

Assembled Cup Cap

Assembled sample cup illustrates the Underside view of cap

Integrated overflow reservoir in position illustrates physical barriers

To facilitate trimming extraneous thin-film, the 32mm diameter sample cups are alternatively provided with patented serrated cutting edges integrated in the upper portion of the “Snap-On Rings.” To order 32mm diameter sample cups with serrated edged thin-film assembling rings, request catalog number “1330-SE.”

SE Ring

Serrated edged “Snap-On Ring” is responsible

for detaching extraneous thin-film

* Reg. US Patent No: 7,981,380 B2

® Chemplex and Trimless are registered trademarks of Chemplex Industries, Inc.

More Information

Instrument Compatibility

The following table lists some known sample cup compatibilities and provided for reference purposes. This is not an exhaustive list and serves as a guideline. Please check dimensions of the sample holder and compare them to the sample cup dimensions. Samples are available upon request to verify sample cup compatibilities.

Manuf Models Sample Cup Cat No
Bruker S2 Puma 2140, 2143, 2144 & 2154
Bruker S2 Puma w/ Xflash 2143, 2144 & 2154
Bruker S2 Ranger 2143
Bruker S4 2140
Bruker S8 w/ Flex Loader 2143, 2144 & 2154
Bruker S8 Tiger 2143, 2144, 2154, 1095 & 2195
Horiba SLFA Units 1850, 1083 & 1084
Horiba 6100/6800/60A 1086 & 1087
Horiba Mesa 7220 1083, 1850 & 3130 ( use 7220-P or 7220-S locating ring)
Innov-X Hand Held Units 1330, 1330-SE & 1340
Oxford Lab-X 1940L, 1940-ox
Oxford MDX 1935-ox, 1940-ox
Oxford Replacement Cells 54-LX6922 1440L
Oxford Replacement Cells & Covers: 54-CK-100 1935-ox
Oxford Replacement Cells & Covers: 54-CK-100 and L242 Holder 1940-ox
Malvern Panalytical Epsilon 3XL, MiniPal 2135
Malvern Panalytical Axios P2
Malvern Panalytical Epsilon 5 2145, 2146
Malvern Panalytical Venus 200 1095, 2195
Rigaku Mini-Z

2140

Rigaku Primus, Rix, ZSX-100

1095, 2195

Spectro XEPOS, Xepos Low S, Xepos IQ, X-Lab 2000, 200, 200T Titan, Phoenix 1060, 1065, 1070, 1075, Series 1300, Series 1400, Series 1500, Series 1700, Series 1800, 1930, 1930-SE, 1940, 2131, 2135
Spectro IQ 2132
Spectro Phoenix II 2131
Spectro Scout 3106, 3110, 3115 & 3120
Thermo Advant'x 2146
Xenemetrix X-Calibur, X-Cite 2131, 2132, 2132S, 1540
XOS Sindie®, Clora, Signal, HD Maxine, Phoebe, Peta 1083, 1084 & 1850
XOS Sindie 3rd Generation 3130 & 3132

Recycling

Chemplex® XRF sample cups are made from virgin HDPE and can be recycled. Please contact your local county or municipality to determine your local recycling options and procedures.

HDPE
